Simple First-Flush for Off-Grid Rainwater Collecting

Nov 4, 2024 | Off-Grid | 0 comments

Going from weekend trips to longer stays on the property requires getting things in order at home first. Planning and testing up front removes a huge amount of stress when moving to an off-grid property for the weekend or full-time.

My electrical system (Solar Power, distribution, and storage) is well on its way and ready to be installed.

Step-by-Step Photo Gallery

The term “first-flush” refers to the initial runoff from a rain event, which can carry higher concentrations of pollutants, debris, and contaminants that have accumulated on surfaces since the last rain. Managing first-flush water is important for protecting water quality, especially in urban areas. Here are some key points on creating a simple first-flush system from a 5-gallon bucket.

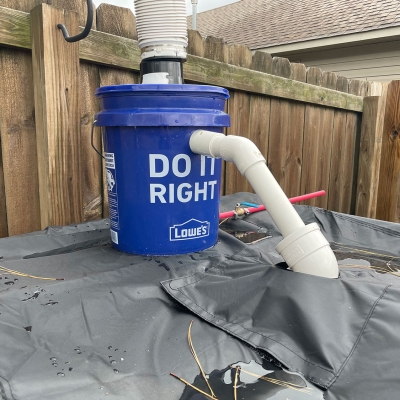

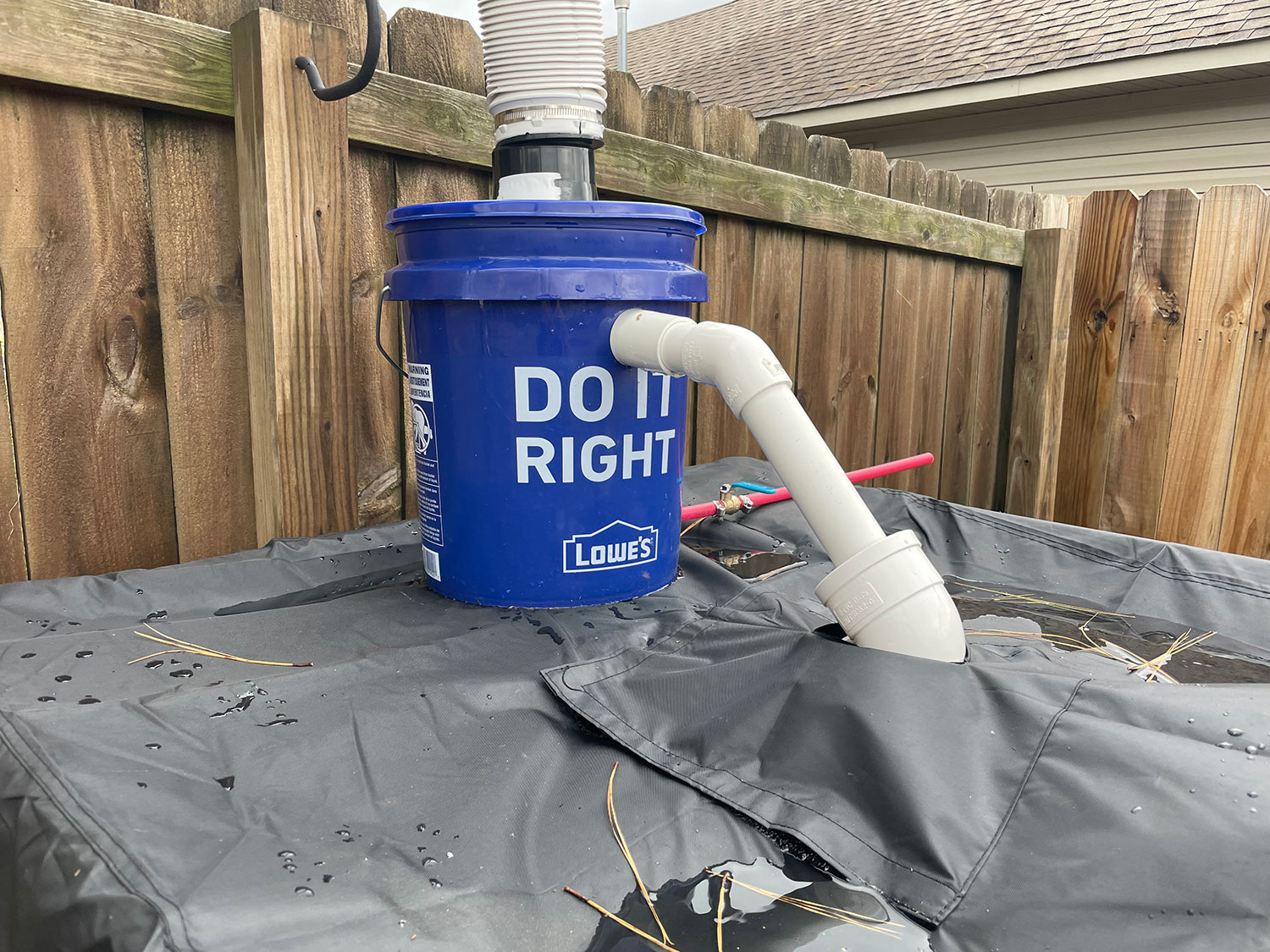

5gl bucket into a 275 gl IBC Totle

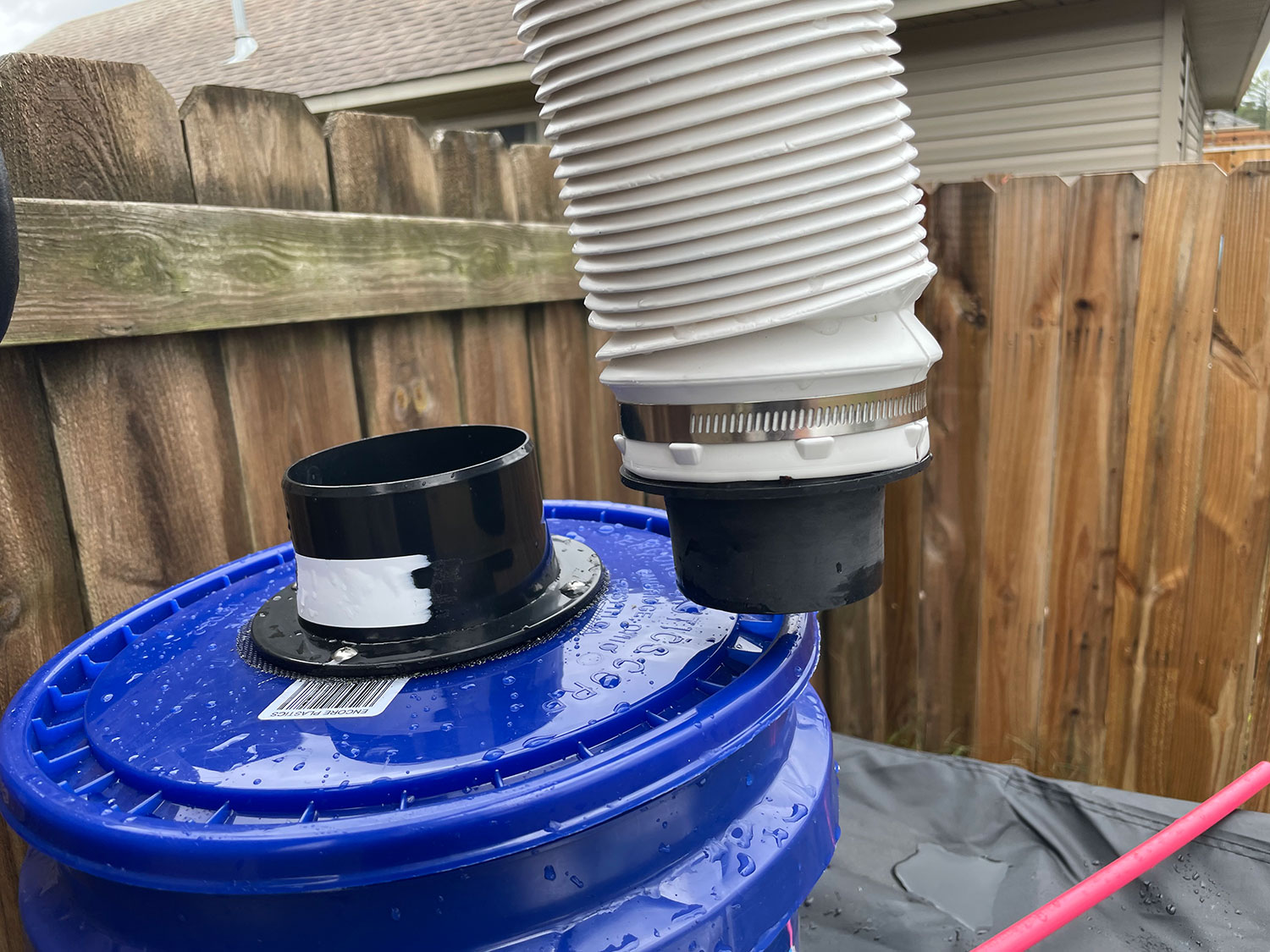

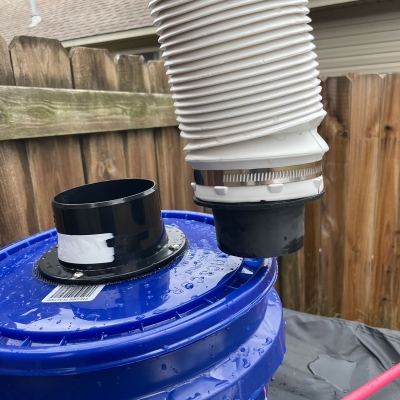

Loose connection will allow removal of debris

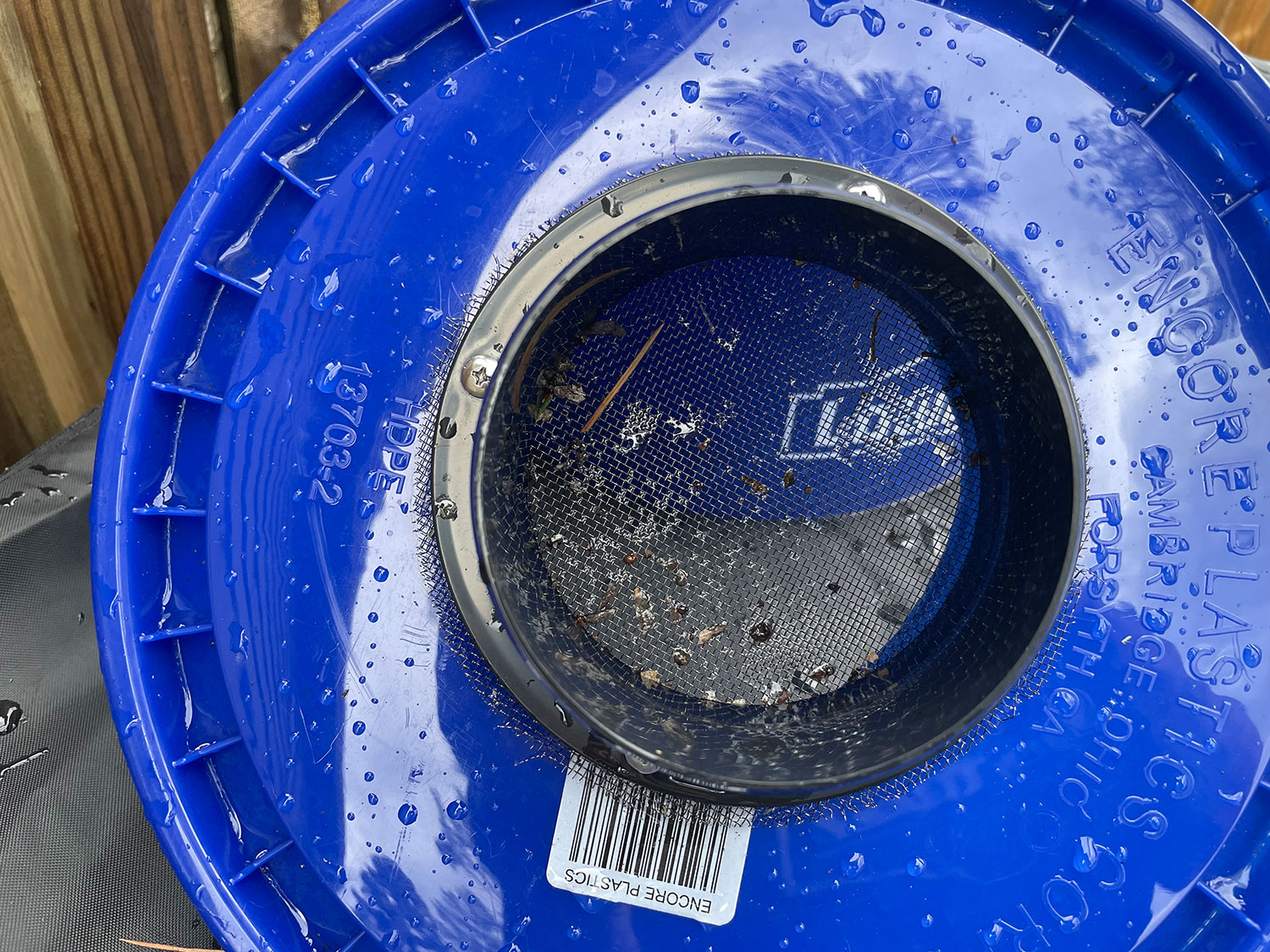

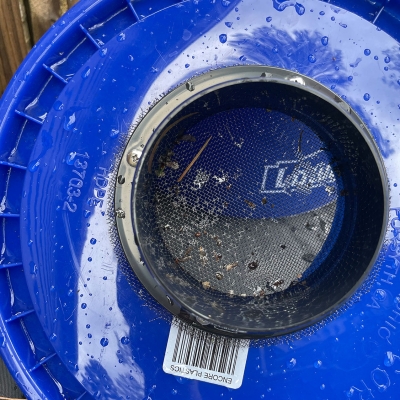

This is the first filter made from aluminum window screen

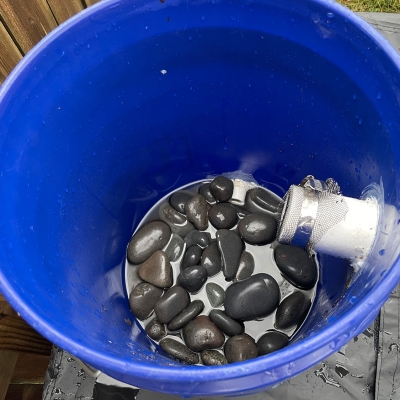

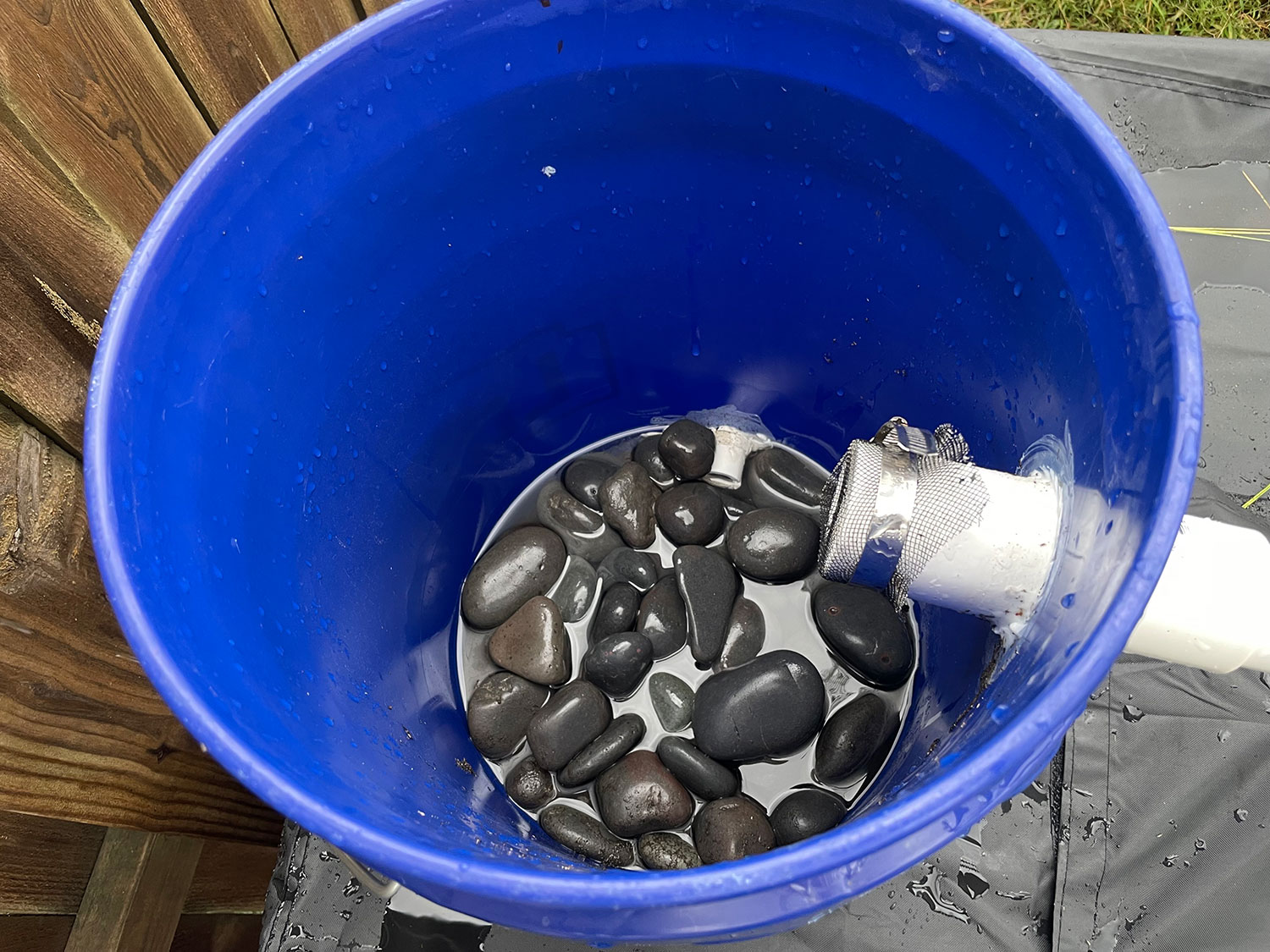

Add rockes to trap the debris in the bottom instead of swirling around in the water

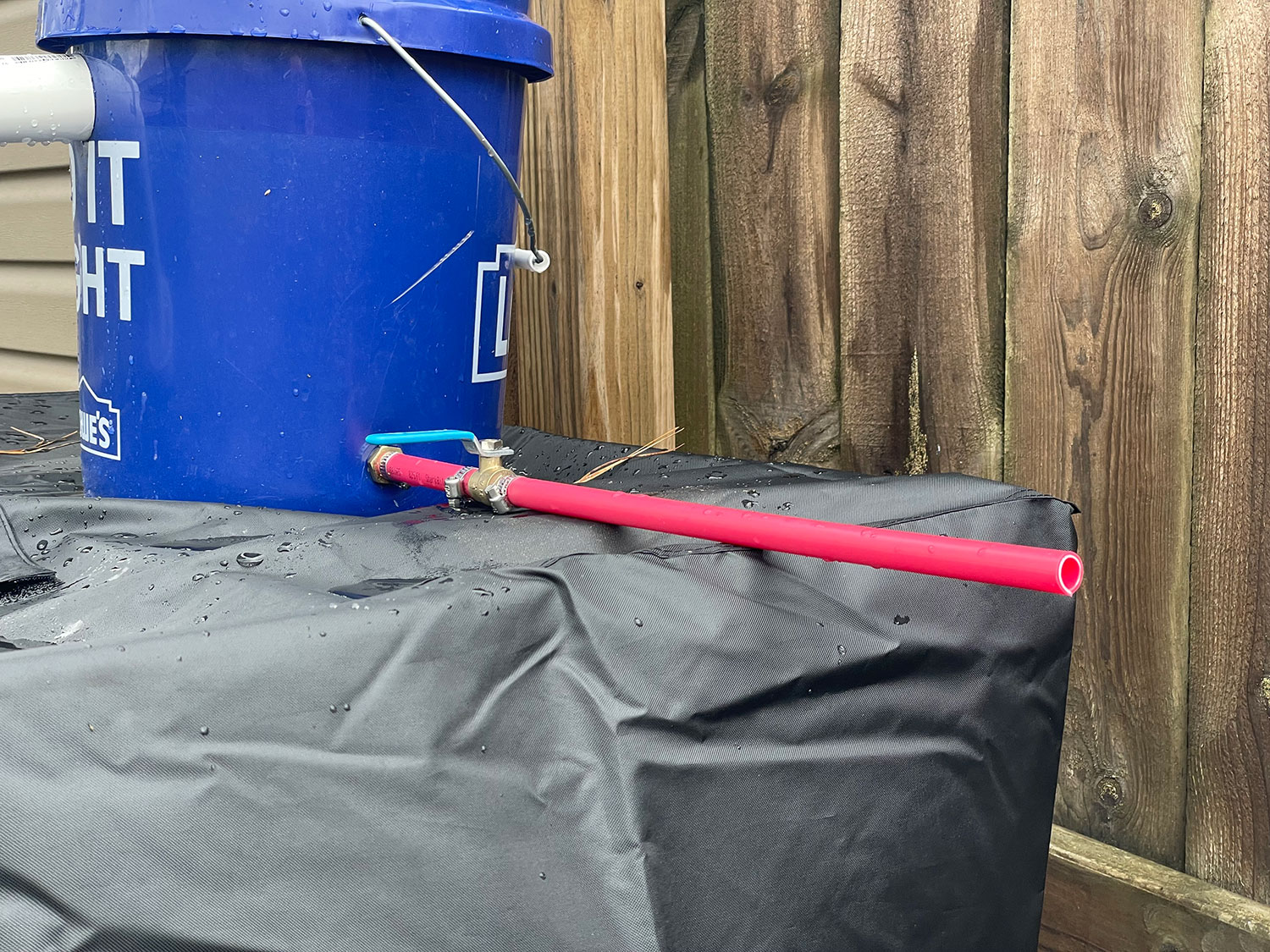

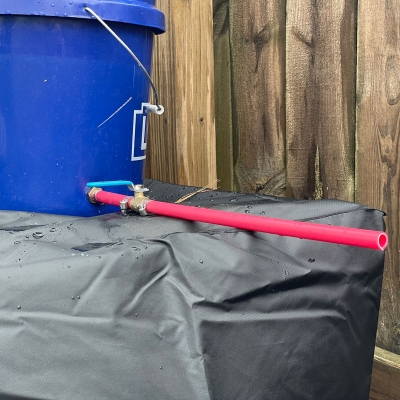

Flusing pipe. Also works for deverting water when the tote is full.

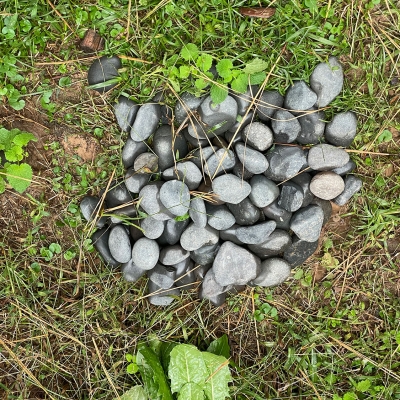

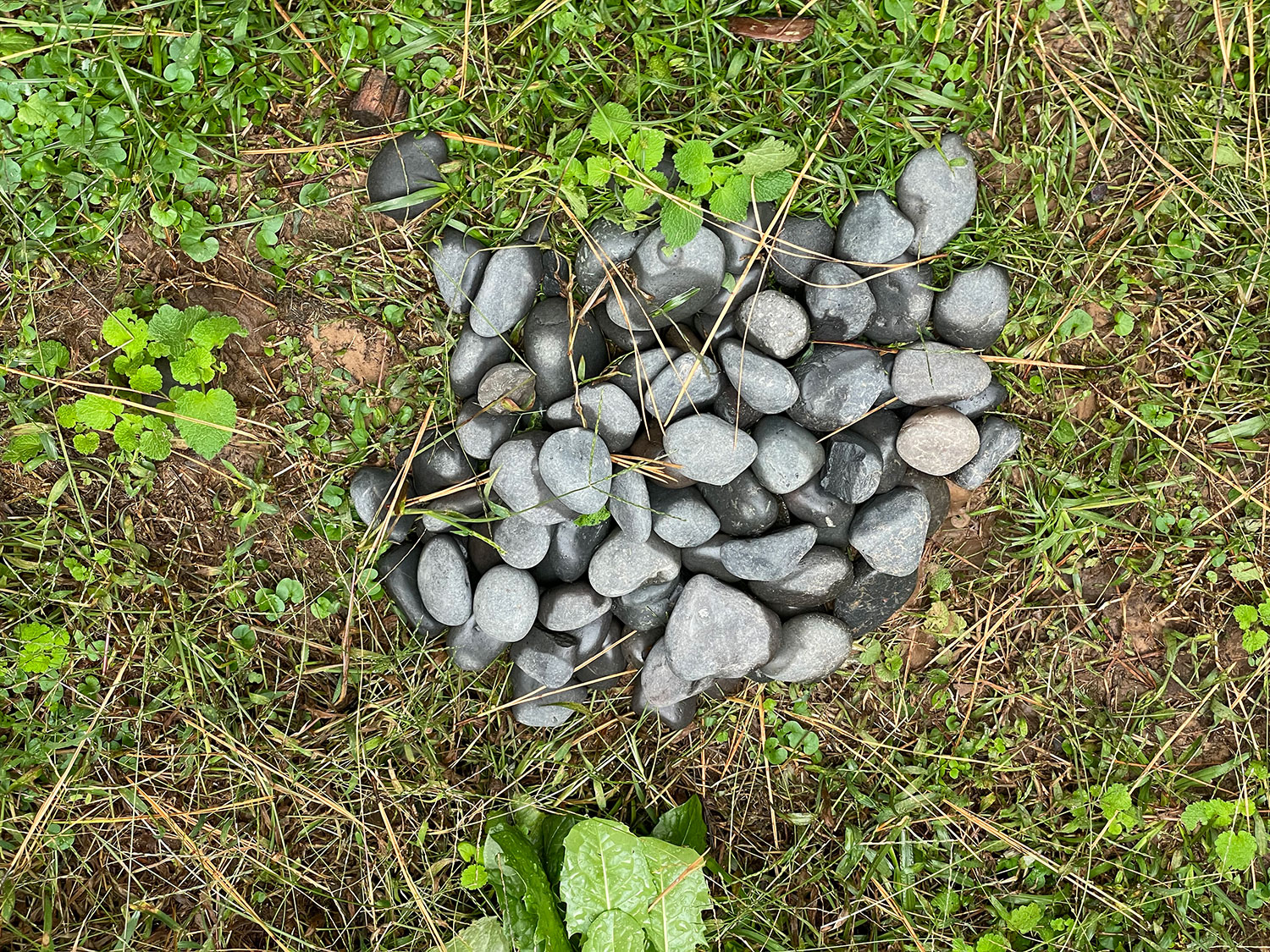

To keep the fluch from creating a whole in the dirt/yard, the water is drained onto these rocks

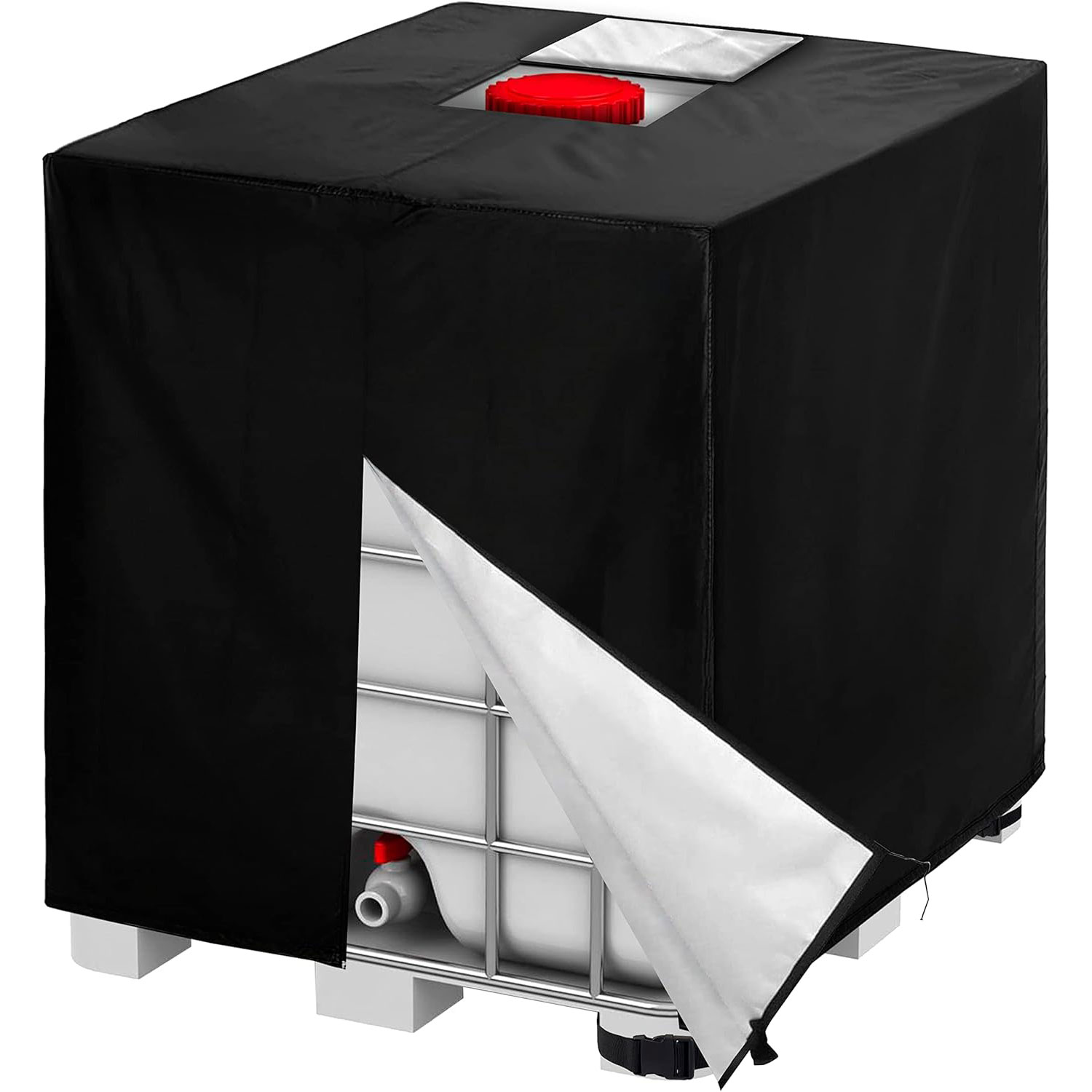

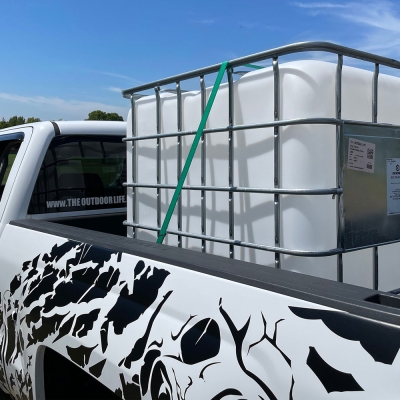

275gl IBC Food-Grade Tote - around Arkansas, these average ~$50

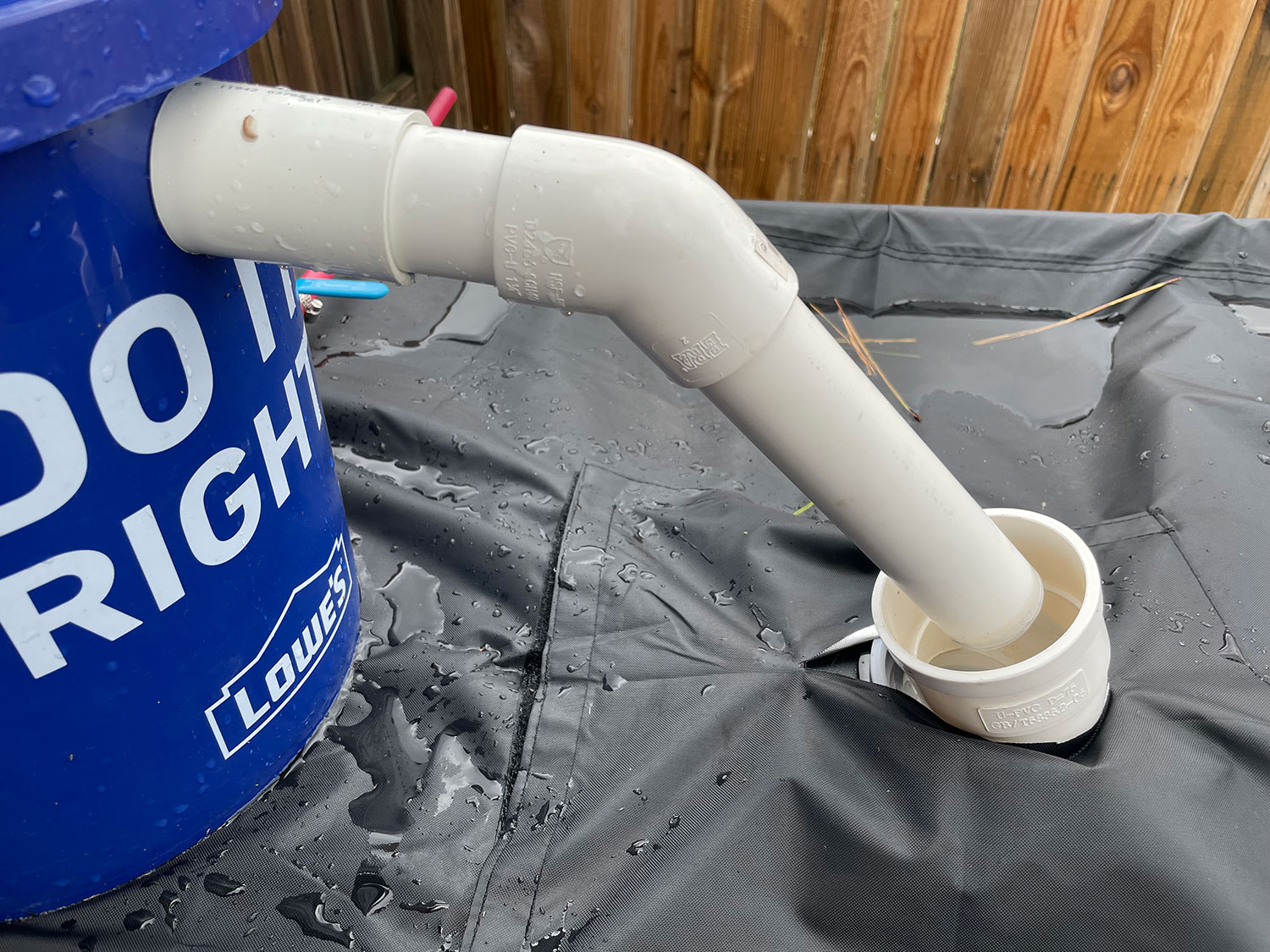

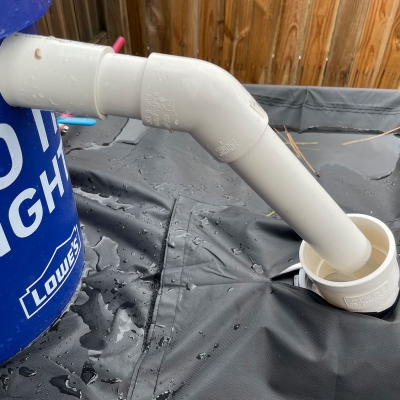

Loose connection into the Tote

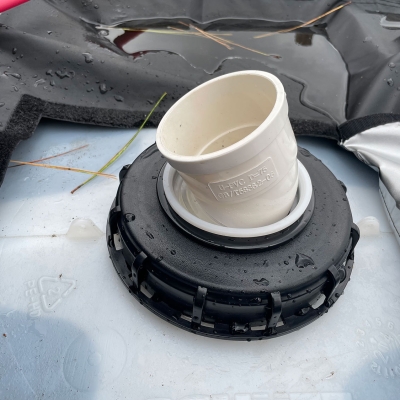

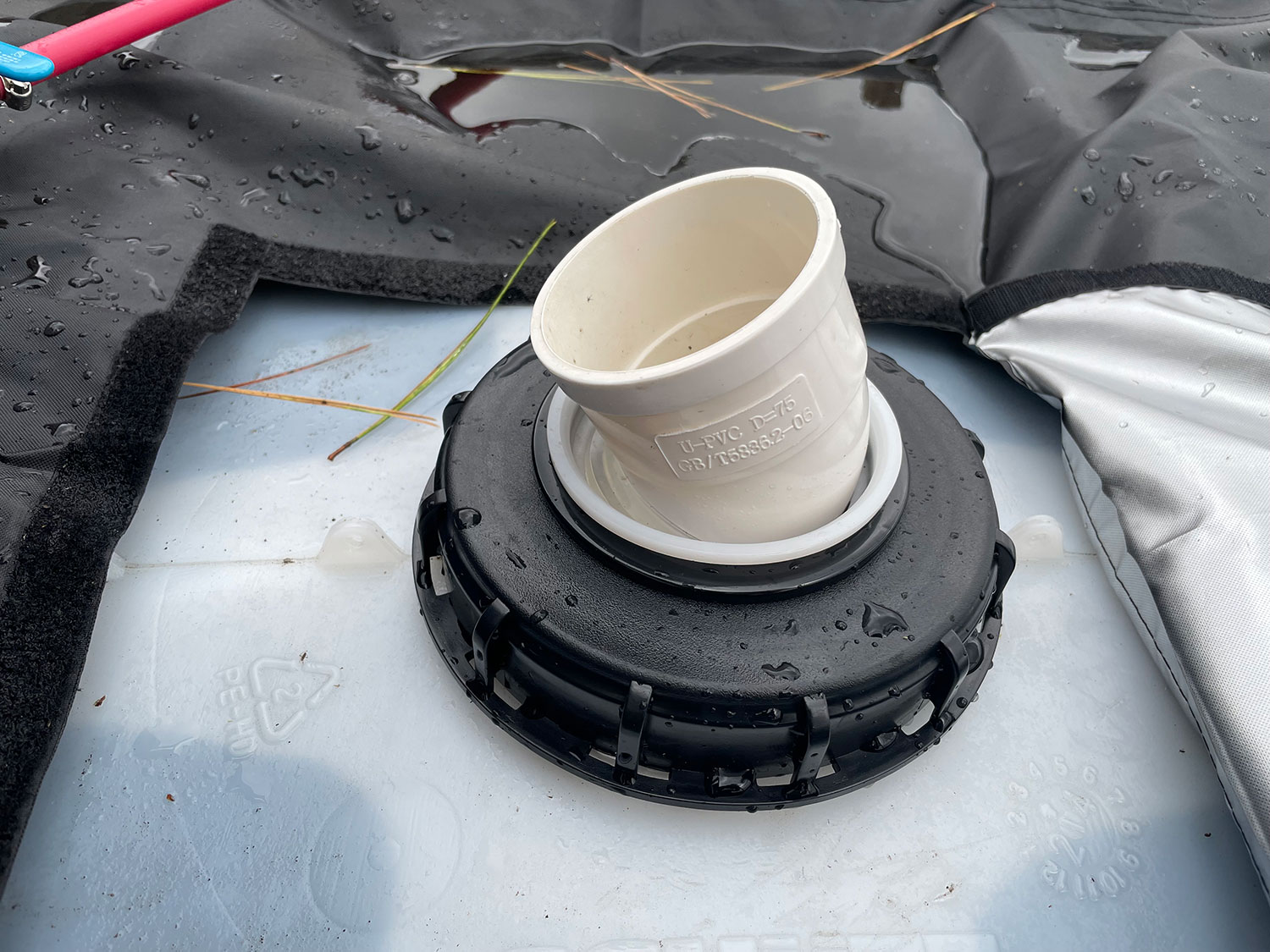

This 45* elbow has a rubber ring on the bottom that is fitted into the filter

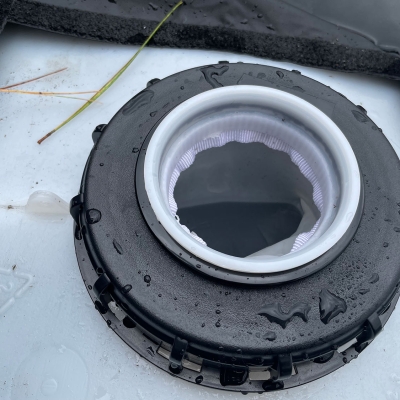

This filter collects most of the fine sentiment, keeps out the mesquites, and anything larger that sneeked through.

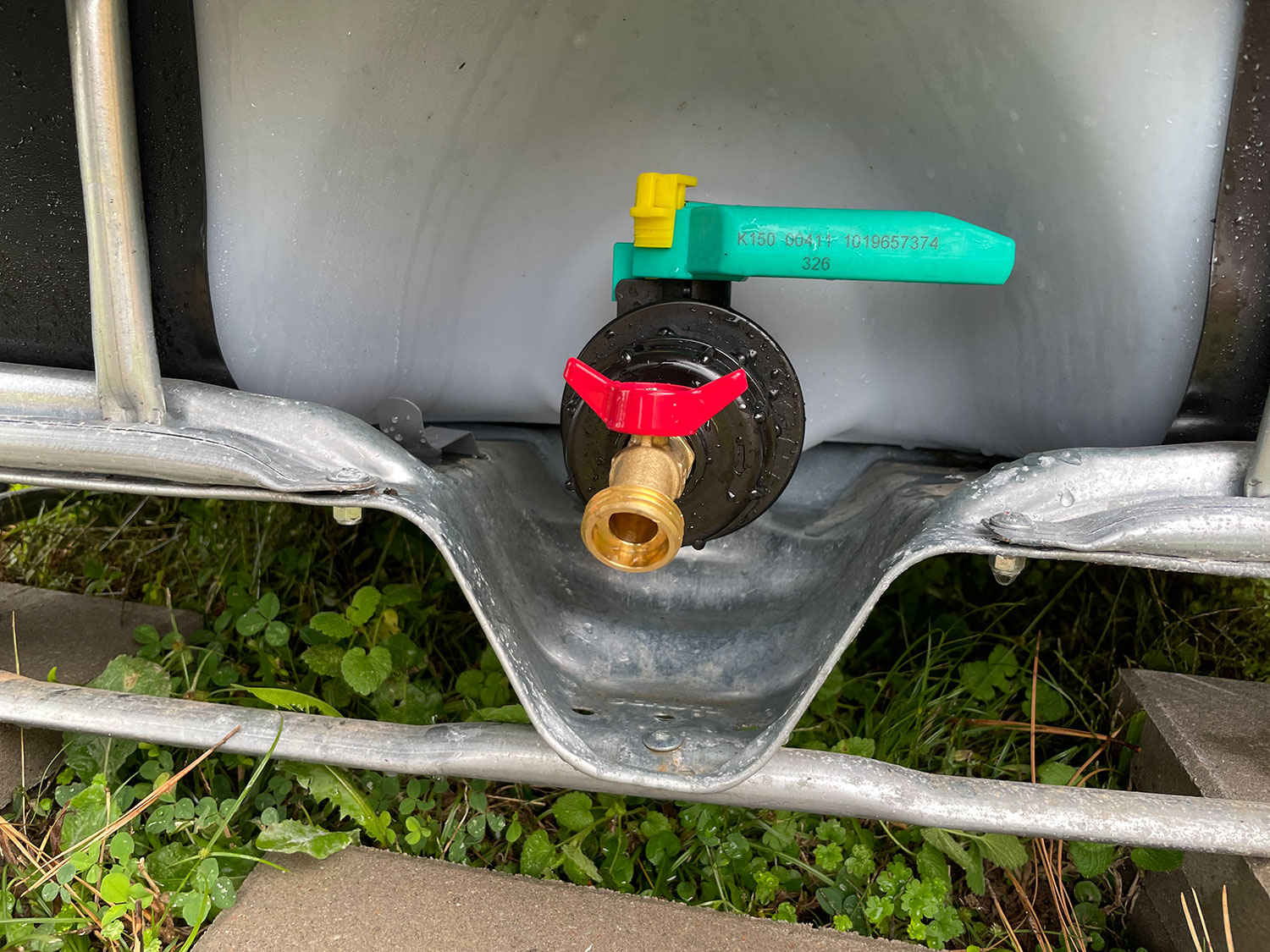

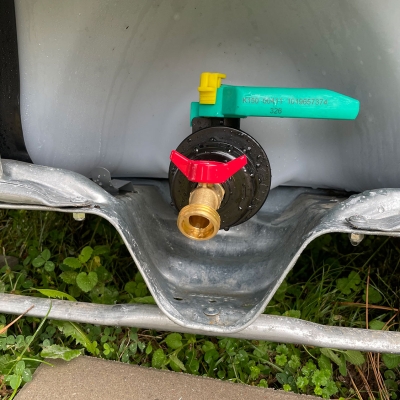

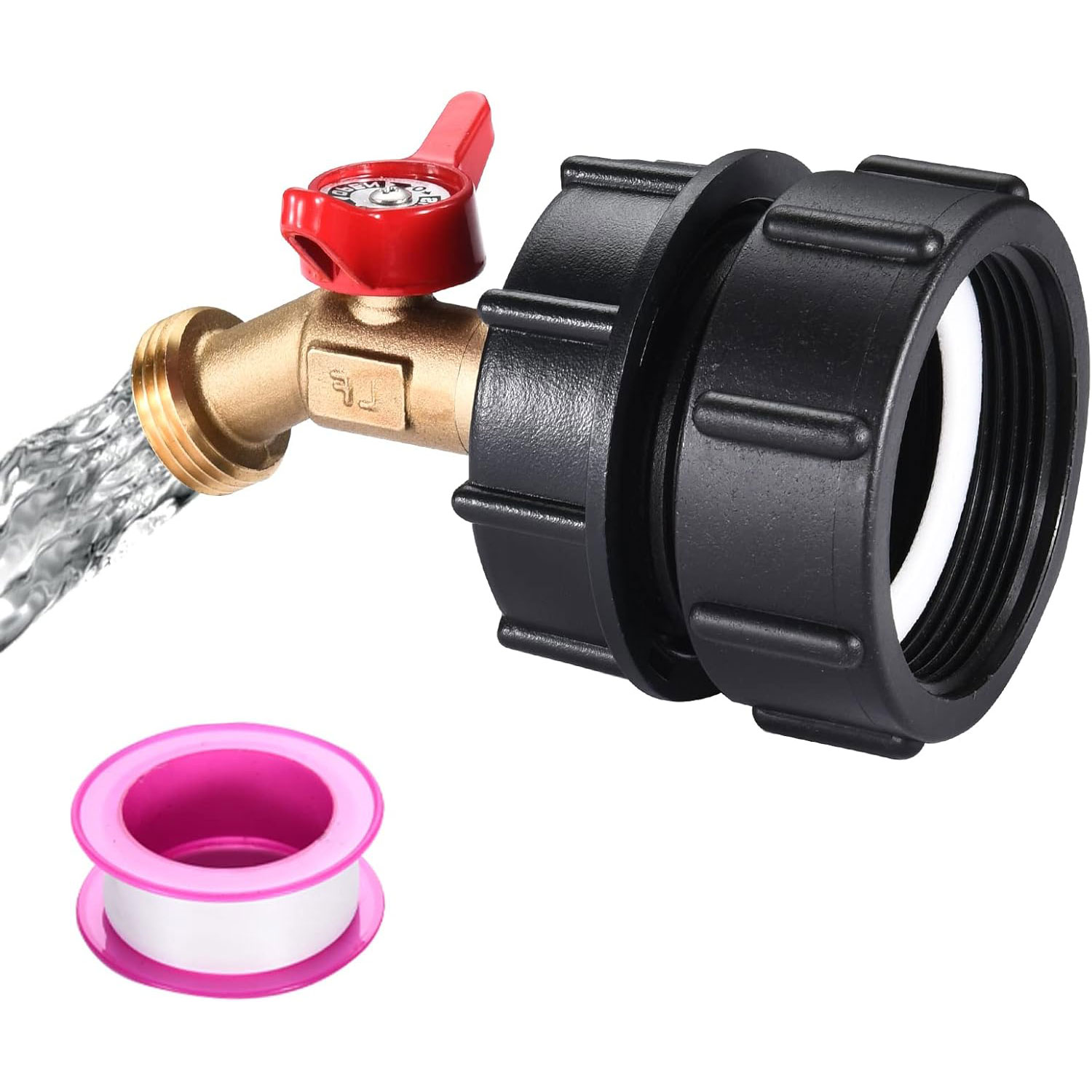

I added a 3/4" hose spigot to make usign the water easy

Products Used:

Most of these items can be found at Home Depot or Lowes.
